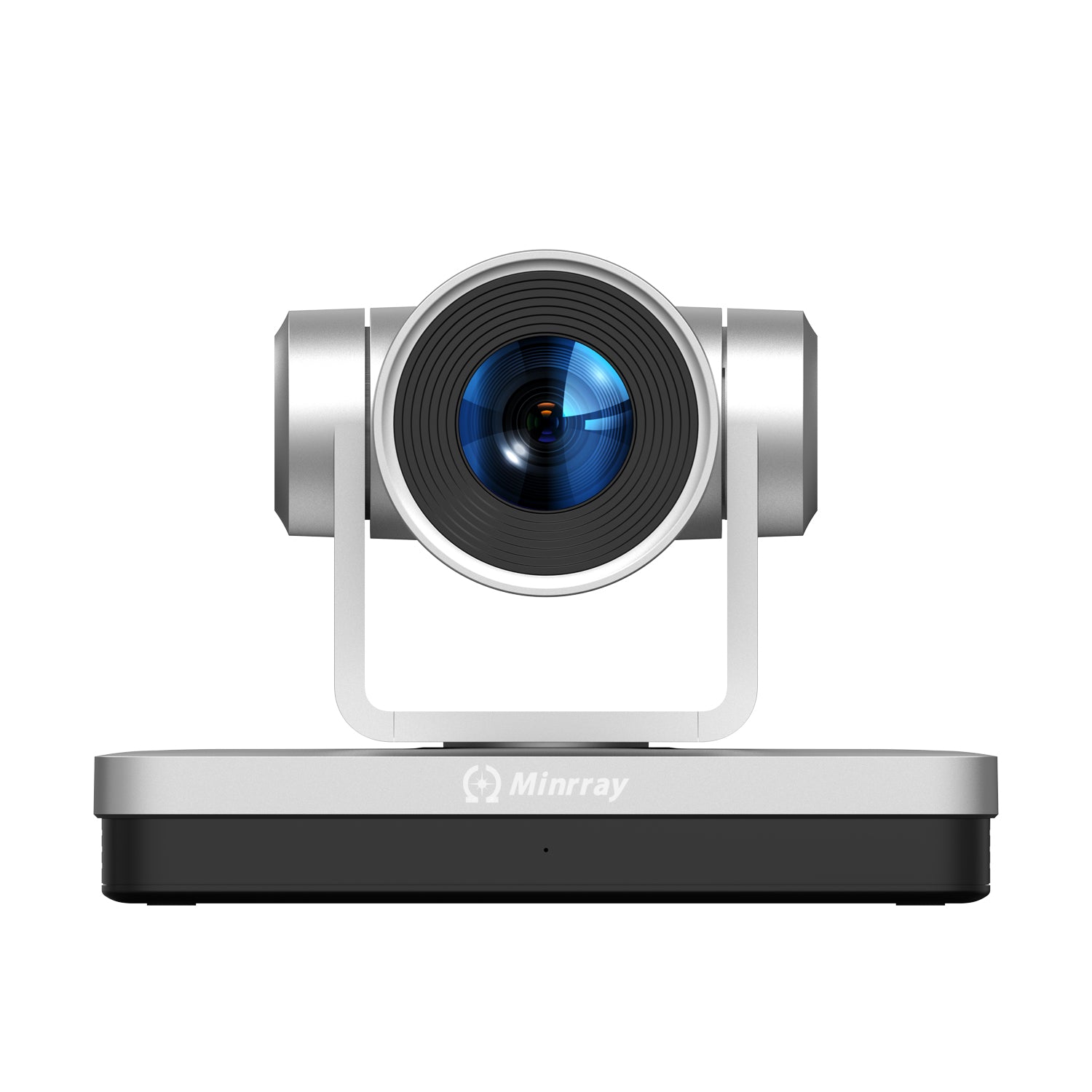

This is a brand new UHD 4K camera, including 3 lenses, 12X optical zoom 80.4°wide-angle lens, 25X optical zoom 59.2°wide-angle lens, and 31X optical zoom 59° wide-angle lens. It has complete functions, excellent performance and rich interfaces. Boasting advanced ISP processing technology and algorithm, cameras deliver the vivid image and uniform picture brightness.
l 4K UHD Resolution: SONY CMOS sensor. Resolution is up to 4K with frame rate up to 60fp.。
l Dual Stream Output：USB support the main stream and sub stream output at the same time, and can meet the needs of near-end and far-end；
l Optical Zoom Lens: 12X optical zoom 80.4°wide-angle lens, 25X optical zoom 59.2°wide-angle lens, and 31X optical zoom 59° wide-angle lens.
l Interfaces：Support HDMI, SDI, USB 2.0, LAN（POE、NDI optional）, and HDMI, USB, LAN output 4K audio and video at the same time.
l Leading Auto Focus Technology: Fast, accurate and stable auto focusing technology.
l Low Noise and High SNR: Super high SNR image is achieved with low noise CMOS. Advanced 3D noise reduction technology further reduces the noise while ensuring high image clarity.
l Multiple Audio/Video Compression Standards: LAN interface supports H.264/H.265 video compression, USB2.0 interface supports MJPG, H264, YUY2, NV12, H265; A-IN interface supports AAC audio compression coding.
l Audio Input Interface: 8000 sampling frequency. support AAC audio compression.
l Multiple Network Protocol: Support ONVIF, GB/T28181, RTSP, RTMP 、SRT,NDI（optional）、Dante AV-H（optional） protocols; Support RTMP push mode, easy to be connected to streaming server (Wowza, FMS); Support RTP multicast mode; Support network full command VISCA control protocol.
l Control Interface: RS422 input(compatible with RS485), RS232 input/output, RS232 (cascade connection).
l Multiple Control Protocol: Support VISCA, PELCO-D, PELCO-P protocols; Support automatic identification protocols.
l Multiple Presets: Up to 255 presets (10 presets via remote control)
l AI Human Detection: Built in high speed processor and advanced image processing and analysis algorithm, and real-time tracking and zone tracking modes are available.
l Multiple Application: Online-education, Lecture Capture, Webcasting, Video conferencing, Tele-medicine, Unified Communication, Emergency command and control systems, etc.
Technical Specification
|
Camera Parameter |
|||
|
Optical Zoom |
12X |
25X |
31X |
|
Focal Length |
f=3.85 mm～46.2 mm ±5% |
f=7.1mm~171.95mm ±5% |
f=6.91 mm～214.21 mm ±5% |
|
Viewing Angle |
Horizontal：7.59˚（N）～ 80.4˚（W） Vertical：4.6˚（N）～ 50.0˚（W） |
Horizontal：2.5˚（N）～ 59.2˚（W） Vertical：1.4˚（N）～ 34.6˚（W） |
Horizontal：1.98˚（N）～ 59˚（W） Vertical：1.12˚（N）～ 34.14˚（W） |
|
Iris Value |
F1.8 ～ F3.56±5% |
F1.61 ～ F5.19±5% |
F1.35 ～ F4.6±5% |
|
Image Sensor |
1/2.5 inch SONY CMOS sensor |
1/1.8 inch SONY CMOS senso |
|
|
Effective Pixels |
8.29M megapixel 16：9 |
||
|
Video Formate |
HDMI： 3840*2160P60/50/25/59.94/29.97;1080P60/50/ 30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/59.94； SDI： 1080P60/50/30/25/59.94/29.97;1080I60/50/59.94; 720P60/50/59.94 USB2.0: MJPG：3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30; H.264：3840*2160/1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30; H.265：1920*1080/1280*720 /1024*768 /1024*576/800*600/720*576/720*480/704*576/640*480 /640*360 /352*288/320*240P30; YUY2：800*448 /720*480P25; 640*360 /432*240P30 NV12：800*448P25; 640*480 /640*360 /432*240P30 |
||
|
Minimum Illumination |
0.05Lux(F1.8, AGC ON) |
||
|
Digital zoom |
8X |
||
|
DNR |
3D DNR |
||
|
White Balance |
Auto / Manual/ One Push/ Specified Temperature |
||
|
Focus |
Auto/Manual/One Push Focus |
||
|
Exposure Mode |
Auto/Manual/Shutter priority/Aperture priority/brightness priority |
||
|
Aperture |
F1.8 ～ F11、CLOSE |
||
|
Shutter Speed |
1/25～1/10000 |
||
|
BLC |
ON/OFF |
||
|
WDR |
OFF/ Dynamic level adjustment |
||
|
Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode |
||
|
SNR |
≥50dB |
||
|
AI Function |
|
|
Real-time Tracking Mode |
The longest tracking distance can reach 6-7 meters, which can support the speaker to walk at a speed of 5-6 mph |
|
Zone Tracking Mode |
4 tracking zones are available, which can be set within -110°～+110°in horizontal and 30°～+30° in vertical. |
|
Interface Parameter |
|
|
Video Interfaces |

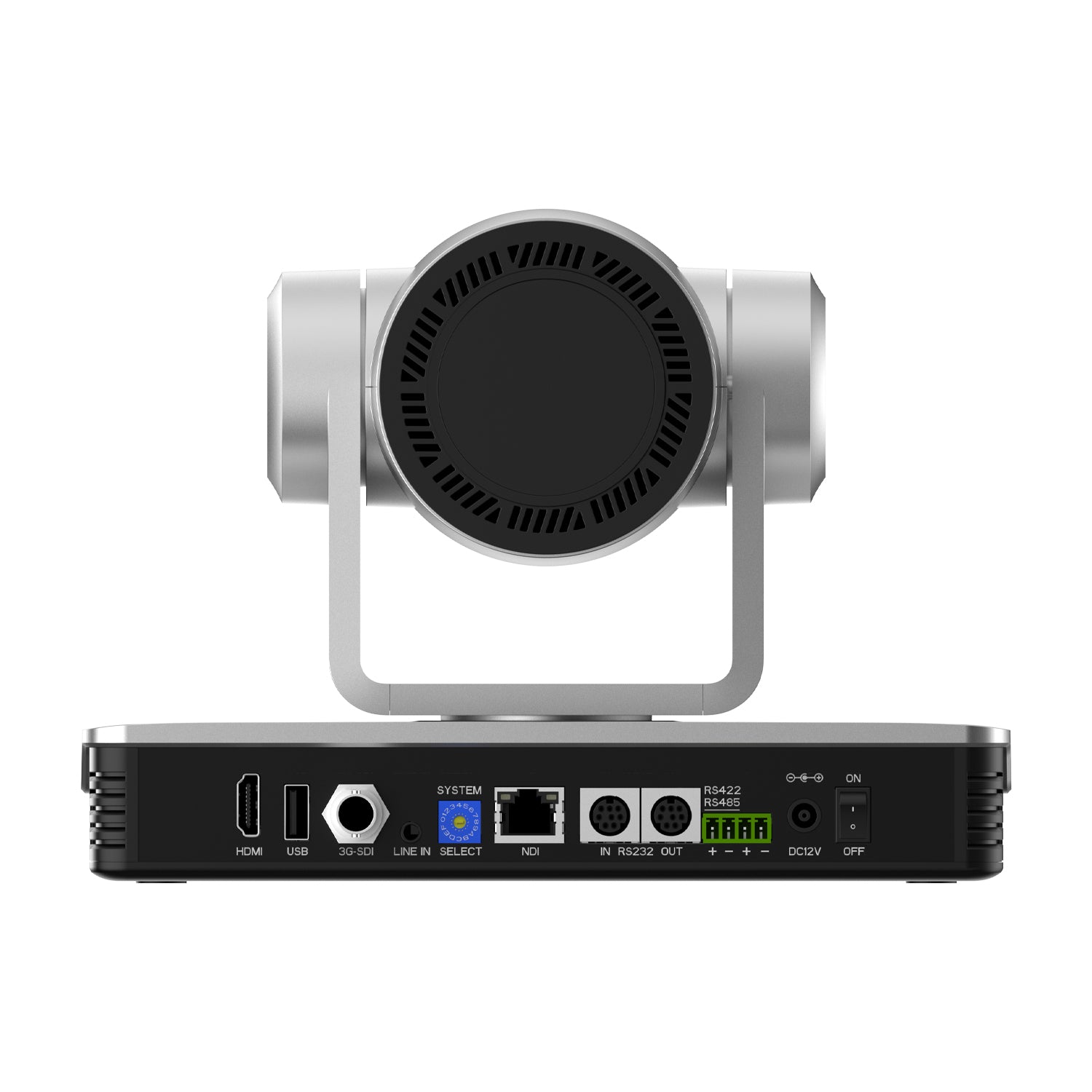

HDMI、SDI、LAN(Support POE+)、USB2.0、A-IN、RS232-IN、 RS232-OUT、RS422（Compatible with RS 485）、Rotary DIP switch、DC12V Power Supply、HDI丨HX3（optional）、Dante（optional）、Power Switch |
|
Video Compression Format |
LAN：H.264、H.265 USB 2.0：MJPG、H.264、H.265、YUY2、NV12 |
|
Audio Input |
Double track 3.5mm linear input |
|
Audio Output |
HDMI、LAN、USB2.0、SDI |
|
Audio Compression Format |
AAC |
|
LAN Jack |
10M/100M/1000M adaptive Ethernet port, support POE+（(802.3at） power supply, support audio and video output |
|
Network Protocols |
RTSP、RTMP、ONVIF、GB/T28181、SRT、NDI（optional）、Dante AV-H（optional） ；Support network VISCA control protocol； |
|
Control Jacks |
RS232-IN、RS232-OUT、RS422 compatible with RS485 |
|
Serial Port Communication Protocols |
VISCA/Pelco-D/Pelco-P；Support Baudrate: 115200/38400/9600/4800/2400 |
|
USB Communication Protocol |
UVC（Video Communication Protocol），UAC（Audio Communication Protocol） |
|
Power Supply |
HEC3800 Outlet (DC12V) |
|
Power Adapter |
AC110V~AC220V to DC12V/2.5A |
|
Input Voltage |
DC12V±10% |
|
Input Current |
≤1.38A |
|
Consumption |
≤16.35W |
|
Dante AV-H |
|
|
Video Codec |
H.264 codec by SoC |
|
Video Format |
1920*1080/1280*720P60/50/30/25 |
|
Video Streaming |
Unicast or Multicast
|
|
Latency-Codec |
≤120ms at 1080p60 |
|
Bandwidth |
4-8Mbps at 1080p60 |
|
PTZ Parameter |
||
|
Pan Move |
-110°～+110° |
|
|
Tilt Move |
-30°～+30° |
-27°～+27° |
|
Pan Speed |
0.1°/s～100°/s |
|
|
Tilt Speed |
0.1°/s～70°/s |
|
|
Preset Speed |
Pan: 78.8°/s，Tilt:31.7°/s |
|
|
Preset Quantity |
Up to 255 preset (10 via remote control) |
|
|
Other Parameter |
|
|
Storage Temperature |
-10℃～+60℃ |
|
Storage Humidity |
20%～95% |
|
Working Temperature |
-10℃～+50℃ |
|
Working Humidity |
20%～80% |
|
Dimension |
220（L）mm×144mm（W）×159mm（H） |
|
Weight |
1.7kg |
|
Environment |
Indoors |
